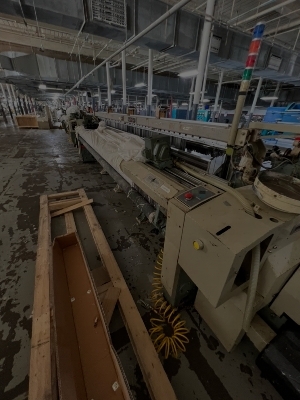

Tsudakoma Air Jet Looms 380cm

Tsudakoma Air Jet Looms 380cm Specification

Product Type
Air Jet Loom

Automation
Automatic

Capacity
High Production (varies by fabric type and width)

Voltage
380V / 50Hz

Power
Approx. 4.5 - 6 kW

Speed
Up to 1300 rpm

Weaving Width
380 cm

Color
Standard (as per manufacturer; usually White / Grey finish)

Dimension (L*W*H)
Approx. 5200 mm x 2000 mm x 2300 mm

Weight
Approximately 2800 kg

Let-off / Take-Up
Electronic

Main Nozzle
High-efficiency air jet nozzle

Display Interface
Digital touch panel

Noise Level
Low (advanced sound dampening design)

Applications
Suitable for cotton, polyester, viscose, blended, and technical fabrics

Selvage Formation
Mechanical or air tuck-in

Shedding Motion
Cam / Dobby / Jacquard

Compressed Air Requirement
0.5 - 0.7 MPa

Lubrication
Automatic centralized

No. Of Shafts
Up to 8 (customizable)

Cloth Roll Diameter
Up to 600 mm

Inlet System
Multiple color (up to 8 color weft selection)

Frame Material
Heavy-duty alloy steel

Tsudakoma Air Jet Looms 380cm Trade Information

Supply Ability
100 Per Month

Delivery Time
7 Days

About Tsudakoma Air Jet Looms 380cm

For Sale: Tsudakoma Air Jet Looms 380cm Brand: Tsudakoma Model: Zax Number of Machines: 17 Year: 1994 Working Width: 380cm Colors: 2 Feeders: 2 Frames: 6 Cam System: Staubli 1600 Take-up: Off-loom Warp Stop Motion: 6 Bar High-performance Tsudakoma Zax Air Jet Looms, designed for wide-width, high-speed fabric production. Each machine offers a 380cm working width with 2-color weaving capability, 6 frames, and 2 feeders, providing flexibility for a variety of woven fabric designs. Equipped with Staubli 1600 cam system, off-loom take-up, and 6-bar warp stop motion, these looms ensure consistent quality, efficient production, and reliable operation. Ideal for industrial, home textile, and fashion fabric production, these well-maintained machines are ready for immediate use. Wide 380cm working width for large-scale fabric production 2-color weaving for versatile designs 6-frame configuration with 2 feeders High-precision Staubli 1600 cam system Off-loom take-up for smoother fabric handling 6-bar warp stop motion for reliable operation Suitable for industrial, home textile, and fashion fabric manufacturing

State-of-the-Art Automation and Digital Control

Experience seamless weaving operations with the digital touch panel and automatic systems for lubrication, let-off, and take-up. The integration of automation reduces manual intervention, streamlines production, and allows for precise adjustments, contributing to higher consistency and fabric quality.

Versatile Weaving for Diverse Applications

The Tsudakoma Air Jet Loom supports up to 8 shafts and multiple color weft selection-making it suitable for producing everything from lightweight cottons to technical and blended fabrics. Users can tailor shedding motion and selvage formation based on specific textile requirements.

Engineered for Efficiency and Reliability

Built with heavy-duty alloy steel, this loom is designed to endure the demands of modern textile production. Its advanced air jet technology delivers speeds up to 1300 rpm, while electronic controls and robust construction ensure durability, low noise levels, and reduced energy consumption.

FAQ's of Tsudakoma Air Jet Looms a 380a cm:

Q: How do I choose between cam, dobby, and jacquard shedding motions on the Tsudakoma Air Jet Loom?

A: The choice of shedding motion depends on your fabric design. For simple weaves, a cam system is sufficient. Dobby is ideal for medium-complexity patterns, while jacquard is recommended for intricate, large-scale designs. Each system can be customized for up to 8 shafts.

Q: What process does the loom use for multiple color weft selection?

A: This air jet loom is equipped with an inlet system that supports up to 8 different weft colors. The system automatically selects and inserts the required weft yarn, enabling users to weave complex patterns or color effects efficiently.

Q: When is maintenance required, and how is it managed?

A: Routine maintenance is minimized thanks to an automatic centralized lubrication system. The digital panel issues maintenance alerts, allowing operators to plan inspections and replace consumables as recommended by the manufacturer for optimal performance.

Q: Where can this loom be used, and what types of fabrics can it produce?

A: The Tsudakoma Air Jet Loom is suitable for textile mills and production facilities, especially in regions like India. It produces a wide range of fabrics, including cotton, polyester, viscose, blends, and various technical textiles.

Q: What are the main benefits of electronic let-off and take-up systems?

A: Electronic let-off and take-up ensure consistent fabric tension throughout the weaving process. This results in uniform fabric quality and reduces the occurrence of defects, maximizing yield and minimizing waste.

Q: How does the air jet nozzle technology improve weaving efficiency?

A: The high-efficiency air jet nozzle allows for rapid and precise insertion of weft yarns, enabling weaving speeds up to 1300 rpm. This enhances productivity without compromising fabric quality, making it ideal for high-volume manufacturing.
