Rieter SB-D 40 Breaker Draw Frames

Rieter SB-D 40 Breaker Draw Frames Specification

Product Type
Breaker Draw Frame

Material
All types of material used

Capacity
Up to 800 kg/h

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Cooling System
Air Cooling

Spinning Method
Other

Voltage
380 V

Power
6.5 kW

Weight
3000 kg

Dimension (L*W*H)
2970 x 1590 x 2370 mm

Color
White & Blue

Lubrication
Centralized automatic lubrication system

Frequency
50 Hz

Sliver Coiler Speed
Up to 200 m/min

Max. Number of Doublings
Up to 8

Noise Level
Less than 78 dB(A)

Application
Cotton, Synthetic and Blended Fibers

Draft Range
3-12

Roller Diameter
45/70 mm

Can Diameter
600 mm, 1000 mm

No. of Delivery
1

Display Interface
Touch Screen

Rieter SB-D 40 Breaker Draw Frames Trade Information

Minimum Order Quantity
7 Pieces

Supply Ability
500 Pieces Per Year

Delivery Time
7 Days

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Domestic Market
All India

About Rieter SB-D 40 Breaker Draw Frames

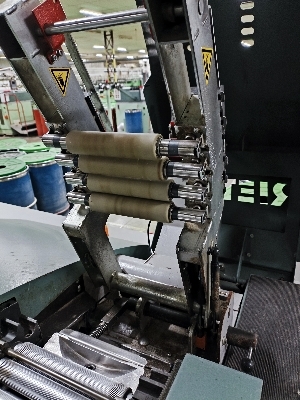

Rieter SB-D 40 Breaker Draw Frames Available for immediate sale: a fleet of 7 Rieter SB-D 40 units. These machines are the industry workhorses for high-performance breaker passage, providing the essential foundation for superior sliver uniformity and high-speed production. Feature Specification Make / Model Rieter SB-D 40 Year of Mfg 2 x 2007 Drafting System 4-over-3 (Precision Fiber Control) Creel Type Power Creel (Driven for tension-free feeding) Doublings 6-fold Can Size 20" x 42" (Delivery) / 40" (Feed) Suction Individual Suction System High Efficiency: The SB-D 40 is designed for high delivery speeds without compromising the parallelization of fibers. Power Creel Advantage: The driven power creel ensures that heavy cans are handled without accidental drafting or stretching of the sliver. Robust Build: Known for its mechanical longevity, these units are ideal for mills looking to expand capacity with proven, reliable technology. Commercial Terms Price: $10,000 per unit Delivery Terms: FOB Availability: 7 Units Total

High-Performance Fiber Processing

The Rieter SB-D 40 Breaker Draw Frame stands out for its high operational efficiency and adaptability. It supports a maximum of eight doublings and handles a range of can diameters to suit various production requirements. With advanced automation and computerized controls, this draw frame streamlines fiber blending and drafting for consistent quality.

User-Friendly Operation and Maintenance

Equipped with a modern touch screen and PLC system, the SB-D 40 simplifies operation and monitoring. The centralized automatic lubrication system and robust air cooling ensure minimal maintenance and reliable uptime. Its ergonomic design prioritizes both safety and convenience for operators.

FAQ's of Rieter SB-D 40 Breaker Draw Frames:

Q: How does the Rieter SB-D 40 ensure consistent sliver quality in textile production?

A: The SB-D 40 maintains consistent sliver quality through its adjustable draft range (3-12), precise touch-screen PLC control, and ability to double up to eight slivers. Automatic lubrication and stable air cooling further enhance operational reliability for uniform output.

Q: What types of fibers can the SB-D 40 Breaker Draw Frame process effectively?

A: This machine is suitable for processing cotton, synthetic, and blended fibers, offering versatility for different manufacturing requirements and ensuring adaptability in diverse textile environments.

Q: When should the centralized automatic lubrication system be serviced?

A: The centralized automatic lubrication system is designed for minimal manual intervention and should be checked periodically as recommended in the maintenance schedule provided by the supplier. Regular checks ensure optimal performance and reduce moving-part wear.

Q: Where is the ideal installation location for the SB-D 40 in a production facility?

A: The SB-D 40 should be installed in a clean, well-ventilated textile area with adequate space for its dimensions (2970 x 1590 x 2370 mm) and easy access for operation and maintenance. Ensure a stable power supply of 380 V and air cooling capability.

Q: What is the process for adjusting sliver coiler speed on this draw frame?

A: The sliver coiler speed, which can be set up to 200 m/min, is adjustable via the touch screen interface. Operators can modify settings based on material type or production needs, with real-time feedback from the computerized control system.

Q: How does the SB-D 40's noise level benefit workplace safety and comfort?

A: Operating at less than 78 dB(A), the SB-D 40 keeps noise levels low, contributing to a safer, more comfortable working environment and reducing the need for additional hearing protection measures.
