Inspection Frames with Conveyor Belt System

Inspection Frames with Conveyor Belt System Specification

Product Type
Inspection Frames with Conveyor Belt System

Automation
Semi-Automatic

Capacity
500 to 1500 meters/hour

Voltage
220-240 V AC

Power
2 kW

Speed
Adjustable (variable speed drive)

Weaving Width
up to 3200 mm

Color
Silver / Customized

Dimension (L*W*H)
3500 mm x 1700 mm x 2100 mm

Weight
Approx. 1200 kg

Noise Level
< 75 dB(A)

Operating Temperature
5C to 45C

Belt Thickness
5 mm

Frame Material
Mild Steel with powder coating

Application
Textile fabric inspection, garment industry, quality control

Environment
Indoor use, dust-free area

Conveyor Belt Material
Anti-static PVC

Control System
Digital control panel with emergency stop switch

Belt Width
Up to 1200 mm

Lighting
Integrated LED inspection lighting

Installation Type
Floor mounted

Surface Finish
Anti-corrosion, smooth powder coat

Inspection Frames with Conveyor Belt System Trade Information

Supply Ability
100 Per Month

Delivery Time
7 Days

About Inspection Frames with Conveyor Belt System

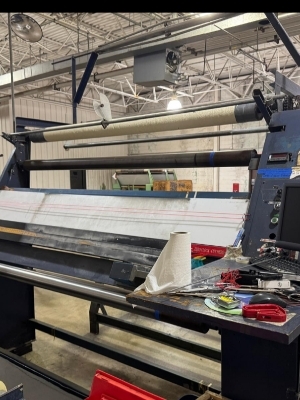

For Sale: Inspection Frames with Conveyor Belt System Working Width: 200cm (as per reference pictures) Actual Fabric Used in Mill: 180cm High-quality inspection frames with integrated conveyor belt system, ideal for textile quality control and fabric inspection. Designed for fabrics up to 200cm wide, these frames provide efficient handling, smooth fabric transport, and accurate inspection. Although the mill previously operated on 180cm fabric, the system is capable of accommodating the full 200cm width, offering flexibility for various fabric sizes and production lines. Working width up to 200cm for wide fabrics Integrated conveyor belt for smooth and efficient fabric handling Suitable for quality control, fabric inspection, and finishing processes Robust construction for long-term operation Ideal for textile mills seeking to improve inspection efficiency

Optimized Fabric Inspection Solution

Our inspection frame system integrates an anti-static PVC conveyor and powerful LED lighting for meticulous examination of textile fabrics. The mild steel structure, finished with a sleek anti-corrosion powder coat, supports daily industrial use while maintaining visual appeal. With a maximum working width of 3200 mm and adjustable speed, it meets diverse production needs in textile and garment factories.

Simple, Safe, and Efficient Controls

The intuitive digital control panel allows users to easily manage operation speeds and instantly halt the system in emergencies. Semi-automatic functionality reduces manual intervention while ensuring precise results. The system is designed with operator safety as a priority, providing reliable performance in dust-free, indoor textile environments.

Versatile and Durable Build

Built for longevity, the frame uses premium mild steel and a durable powder-coated surface. The anti-static conveyor belt, up to 1200 mm wide and 5 mm thick, smoothly transports fabrics of varying thickness and width. The entire unit's low noise operation and customizable dimensions make it a flexible solution for various quality control requirements.

FAQ's of Inspection Frames with Conveyor Belt System:

Q: How does the inspection frame system improve fabric quality control processes?

A: The system streamlines quality control by providing a consistent, illuminated platform for fabric inspection. Its anti-static conveyor and integrated LED lighting help operators detect defects efficiently, ensuring that only high-quality materials proceed through the manufacturing process.

Q: What types of fabrics can be inspected using this conveyor system?

A: This solution is suitable for most woven and non-woven textile fabrics, with the ability to handle material widths up to 3200 mm. Whether for garment production or other textile applications, the adjustable speed and robust belt make handling various fabric types effortless.

Q: When should the emergency stop switch be used during operation?

A: Operators should use the emergency stop switch immediately in any situation where safety is compromised, such as material jams, abnormal noise, or a sudden malfunction. This feature ensures rapid shutdown to protect both the operator and the equipment.

Q: Where is the ideal environment for installing this inspection frame system?

A: The system is designed for indoor use in a dust-free area, as typical in textile factories or garment inspection rooms. This environment preserves the machine's longevity and ensures optimal performance during continuous operation.

Q: What is the process for adjusting the conveyor speed?

A: Operators can easily adjust the conveyor speed using the digital control panel. The variable speed drive lets you match inspection pace to the fabric type and quality control standards, enhancing operational flexibility.

Q: How does the anti-corrosive powder coating benefit the frame?

A: The anti-corrosive powder coating protects the mild steel frame from rust and environmental wear, extending the system's service life and maintaining smooth, damage-free surfaces for reliable operation.

Q: What is the main usage benefit for the garment and textile industry?

A: By enabling quick, accurate detection of defects and supporting high throughputs (up to 1500 meters per hour), this system helps maintain quality standards and reduces waste, ultimately boosting productivity and profitability for industry users.
