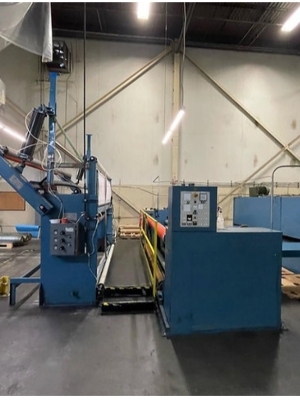

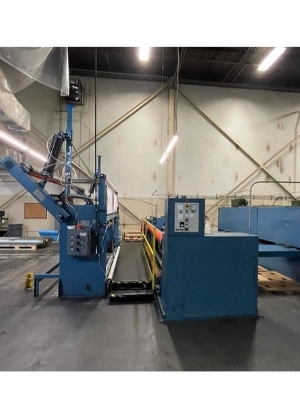

Krantz Dry Line / Tenter

Krantz Dry Line / Tenter Specification

Control Type
PLC Based Digital Control

Usage & Applications
Textile Dyeing, Heat Setting, Drying, Finishing Process

Capacity
Up to 8 Tons/day

Fabric Type
Woven, Knitted, Non-woven

Fabric width
1800 mm (working width)

Voltage
380-415 V

Weight
Approx. 32 Tons

Power
About 120 kW

Dimension (L*W*H)
Approx. 38,000 x 5,100 x 3,800 mm

Pump Type
Hot Air Circulation Blower

Applicable Material
Cotton, Polyester, Blends, Synthetics

No Of Chamber
8

Speed
Up to 120 m/min

Features
Precision Heat Setting, Auto-Tension Control, Energy Efficient Drying, Adjustable Overfeed

Manufacturing Year
2014

Condition
Used (Excellent Condition)

Machine Type
Textile Finishing / Stenter Machine

Type
Dry Line / Tenter

Temperature Range
40C - 220C

Roller Diameter
110 mm (Entry Roller)

Lubrication System
Centralized Auto Lubrication

Exhaust System
Efficient Exhaust & Ventilation Setup

Pin & Clip Chain
Pin-Clip Combined Chain System

Chain Lubrication
Automatic Chain Lubricator

Spray System
Electronic Moisture Spray (optional)

Chamber Heating Source
Thermic Oil / Gas

Safety Devices
Automatic Overload and Overheat Protection

Operator Panel
Touch Screen HMI

Air Balance System
Adjustable Air Flow and Exhaust

Number of Motors
Customized as per Chambers

Drive Type
Individual Chamber Drive System

About Krantz Dry Line / Tenter

Krantz Dry Line / Tenter 1990 Overview: The Krantz Dry Line/Tenter, installed in 1990, delivers reliable drying performance for a variety of fabrics, combining precise temperature control with efficient material handling. Key Features: Maximum Fabric Width: 4m accommodates wide fabrics. Fabric Handling: Clip chain system ensures smooth and secure fabric transport. Drying Zones: 4 independent zones for optimized drying control. Heating: Gas-heated system for consistent and efficient drying. Benefits for Operations: Reliable and uniform fabric drying across all widths. Efficient handling reduces fabric stress and defects. Adjustable zones allow precise control for different fabric types. Energy-efficient gas heating reduces operational costs.

Superior Drying and Finishing Technology

The Krantz Dry Line / Tenter machine leverages state-of-the-art chamber heating, automated lubrication, and a precision PLC-based control system to deliver consistent, high-quality fabric processing. Its advanced drive and ventilation systems enable superior energy efficiency and excellent operational performance for a diverse array of textiles.

Versatile and Customizable Operation

Designed for adaptability, this machine accommodates a variety of fabric types, widths, and production needs. With individual chamber drives, automatic tension control, and a customizable number of motors, each setup can be tailored to specific requirements for optimal results.

Safety and Ease of Operation

Equipped with automatic overload and overheat protection, centralized lubrication, and user-friendly touch screen controls, the Krantz Dry Line / Tenter ensures both safety and ease of use. Adjustable air balance and exhaust systems provide precise process control for impeccable fabric quality.

FAQ's of Krantz Dry Line / Tenter:

Q: How does the Krantz Dry Line / Tenter ensure energy-efficient drying for textiles?

A: The machine utilizes precision heat setting through chamber heating with thermic oil or gas, combined with an efficient exhaust and ventilation system. Adjustable air flow and exhaust, plus automated control features, maximize energy efficiency during fabric drying and finishing processes.

Q: What types of fabrics can be processed with this tenter machine?

A: This machine is suitable for processing woven, knitted, and non-woven materials, including cotton, polyester, blends, and synthetics. Its adaptable configuration allows finishing of a broad range of fabric types.

Q: When is it ideal to use the Electronic Moisture Spray system?

A: The optional Electronic Moisture Spray system can be engaged when handling fabrics that require precise moisture addition for optimal finishing results, such as during critical heat setting or drying operations.

Q: Where is the machine suitable to be installed and operated?

A: This tenter is ideal for textile dyeing and finishing units, especially in production settings across India, and can be integrated into facilities specializing in heat setting, drying, and related processes.

Q: What is the process for adjusting machine parameters during operation?

A: Operators can adjust parameters like temperature, speed, air flow, and overfeed directly via the touch screen HMI, allowing real-time changes and monitoring for enhanced process control and fabric outcomes.

Q: How do safety features benefit daily operation of the machine?

A: The automatic overload and overheat protection systems safeguard equipment and operators, minimizing downtime and ensuring stable, safe performance throughout intensive production shifts.
